Ultrasonic Vehicular Testing

Representatives of M/s Paras Electronics, Hyderabad which is providing Vehicular Ultrasonic Testing Services for Indian Railways.

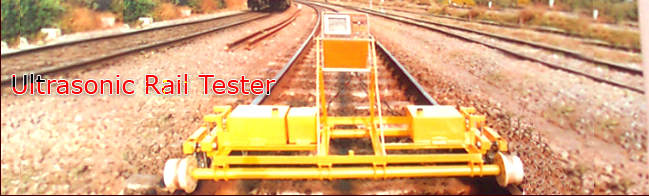

Ultrasonic Double Rail Testers

• Conforms to RDSO specification (M&C/NDT/130 & 128)
• Fully Digital, State of Art Technology
• High speed digitizer for faithful reproduction of Ultrasonic waveforms
• Direct calibration using Numeric values apart from echo display calibration
• Menu driven user friendly operation
• Accommodates complete system, probes connectors and battery – No separate Control Box/Junction box
• Unit size: 250x180x135 mm, Weight: Approx 3.0 Kg
• Overall weight with Battery, w/o Water: DRT <70 Kg, SRT <21.5 Kg
• Battery operation for 8 hours

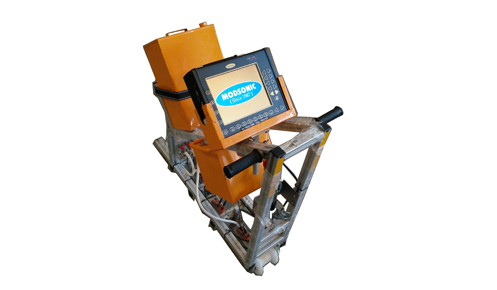

Ultrasonic Single Rail Testers

• Distance measurement up to 9999 meters with 1 meter resolution
• Distance resettable at Km/TP as per operator choice
• Automatic Forward/Reverse distance counting
• A-Scan Data Logging – Single Channel A-Scan or Single Channel Envelope freeze
• Operator Entries of Defect details recording along with Envelope, Printable from PC
• TROLLEY: Light Weight, sturdy design with Independent Probe alignment
• Automatic Gauge tracking for DRT, Metallic Water tanks 20 litres Each (DRT)
• Same type of probes for SRT & DRT, Easy balanced movement on track

Ultrasonic Weld Testers

• Large DISPLAY-LCD/TFT (132x102 mm), High Brightness LCD-TFT display
• Easy Identification of defect detecting Probe
• Monitor Gates – Independent Gates for each probe
• Gate position, width and Threshold indicated on screen by separate colour line
