Arjun 10

Arjun-10

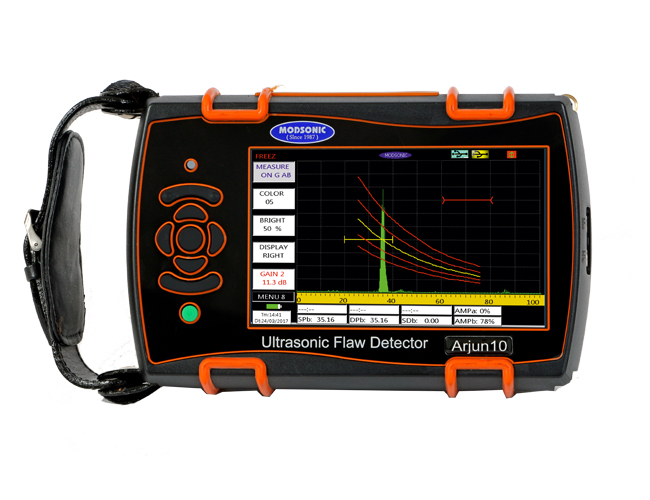

Palmtop, Ultra-light Digital Ultrasonic Flaw Detector Arjun-10 – Salient Features

• Palmtop & Ultra-light design for Single hand Operation
• Test Range – 2.5 mm to 5 meter (in steel)
• Measurement Resolution – 0.01mm
• Frequency 0.5 MHZ to 15 MHZ (Wideband)
• Amplitude Measurement up to 127% of FSH
• Peak Freeze / Echo Dynamic feature.
• Reference A-scan pattern of standard test object can be saved and Recalled in the background for easy comparisons during testing.
• Memory of 500 A-Scan patterns and 50 calibration set-ups can be accommodated in the machine which can be transferred to PC, Also unlimited memory can be saved in the Micro SD card and transferred to PC.
